Built for Deep Water Extraction, Engineered to IS Standards
For over five decades, Utkarsh Pipes & Fittings has been a trusted name in borewell applications, built on a record of performance and reliability across residential, agricultural, and industrial installations. Our uPVC pipes for borewell systems are manufactured to IS 12818:2010, the governing standard for underground uPVC pipes used in borewell applications, and engineered specifically for the stresses of deep boring. Pipes are available in Schedule 40, 80, and 120 wall-thickness classes, across a size range of 35mm to 400mm (1¼" to 16"), and are further classified by depth suitability: Shallow (CS) for wells up to 80 meters, Medium (CM) for 80 to 250 meters, and Deep (CD) for 250 to 450 meters. An integrated thread lock system makes joining pipe lengths fast and secure on site, and every batch goes through OIT (Oxidative Induction Time) testing to confirm the material's long-term stability under load.
Designed to withstand extreme underground pressure, these pipes resist corrosion, scaling, and chemical attack even in saline or mineral-heavy groundwater. Their lightweight construction cuts handling and installation time, while a leak-proof joint design keeps the water supply consistent from deep wells all the way to the surface. Whether the application is agricultural, industrial, or residential, the result is a pipe built to hold up over years of continuous use.
Overview of Utkarsh’s Best Borewell Pipes:
- High Load-Bearing Capacity: Built to endure heavy soil pressure, maintaining structural integrity in deep borewell applications.
- Leak-Proof Joints: Precision-engineered fittings prevent water leakage and keep supply consistent from the well to the surface.
- Non-Toxic and Safe: Manufactured from lead-free materials, safe for potable water extraction.
- Weather-Resistant: UV-stabilized to resist degradation from prolonged sun exposure.
- Low Maintenance: Resistant to rust, scaling, and bacterial growth, keeping long-term upkeep costs down.
-
44000
Plant Area
-
68000
Production Capacity
-
5000
Ready Stock
See how best borewell pipes make deep water extraction easy and efficient, keeping the flow strong and steady!
Associated Products
A complete borewell system relies on more than one type of pipe. From casing pipes that support the well and screen out sediment, to column riser pipes that carry water to the surface, to surface-level distribution piping, Utkarsh manufactures the full range needed for a reliable installation.
PVC Casing Pipes for Borewell Applications
PVC casing pipes support the walls of a borewell and prevent sediment or collapsing soil from entering the water supply, especially in sandy, silty, or chemically aggressive groundwater conditions.
Utkarsh casing pipes are manufactured to IS 12818:2010, available in Schedule 40, 80, and 120 wall-thickness classes, and cover a size range of 35mm to 400mm (1¼" to 16"). They're also classified by depth suitability to match the well being drilled:
1. Casing Shallow (CS): wells up to 80 meters (262 ft)
2. Casing Medium (CM): wells from 80 to 250 meters (820 ft)
3. Casing Deep (CD): wells from 250 to 450 meters (1,476 ft)
Why Utkarsh PVC Casing Pipes?
- Designed for deep water extraction and areas with highly collapsible soil
- Threaded terminals for a joint that's easy and economical to install
- Rust-free and chemical-resistant, keeping water taste and quality unaltered
- Roughly five times lighter than steel casing, cutting transport and handling cost
- Available in CM/CS/CD classes and Schedule 40 to 120 to match well depth and pressure conditions
This range covers residential borewells, agricultural tube wells, and industrial water supply installations where casing durability and depth rating both matter.
Column Riser Pipes for Submersible Pumps
Column pipes, also called riser pipes, carry water from deep underground to the surface while supporting the weight of the submersible pump itself.
Why They’re Essential in Borewell Systems?
- Heavy-Duty Performance: Designed to withstand high pressure and ensure smooth water flow
- Durability and Strength: Made from premium uPVC that resists corrosion, rust, and wear
- Leak-Proof Joints: Rubber sealing rings absorb pump vibration and prevent leaks over years of use
- High Tensile Load Capacity: Specially designed square threads (male and female) handle the tensile load of the pump and pipe column safely
- Easy Installation: Lightweight yet sturdy, with 3-meter lengths and threaded ends for straightforward fitment
Available in 1", 1¼", 1½", 2", 2½", 3", and 4" sizes across different pressure classes, Utkarsh column riser pipes are tested to withstand system load from the pump, water, and pipe weight combined, with an adequate safety factor built in.
Surface Distribution with uFLO uPVC Pipes & Fittings
When it comes to borewell applications, best borewell pipes need to be tough, long-lasting, and efficient—just like our uFLO uPVC Pipes & Fittings. Designed with unplasticized polyvinyl chloride (uPVC), these pipes offer superior UV resistance and unmatched durability.
Why Choose uFLO uPVC Pipes for Borewell Systems?
- Manufactured from unplasticized polyvinyl chloride (uPVC) for strength and UV resistance
- Lead-free construction suitable for potable water
- Available in ½" to 2" sizes as per ASTM D 1785 (Schedule 40 and 80), with fittings to ASTM D 2467 (Schedule 80)
- Smooth inner surface minimizes friction, maintaining flow rate from the pump to the point of use
- Lightweight and easy to install, with leak-proof joints
Manufactured in-house, uFLO completes the system, from the casing pipe underground, to the riser pipe carrying water up, to the surface plumbing that delivers it.

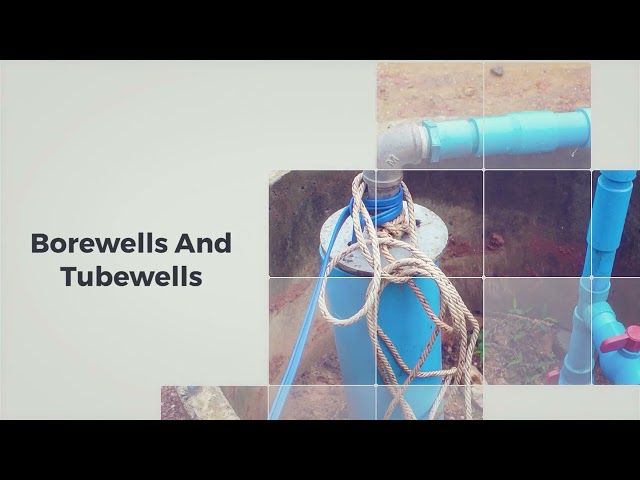

Video Gallery
Watch our products in action, view installation guides, and gain detailed insights into our manufacturing processes and quality standards.
FAQs
Utkarsh PVC well casing pipes are available from 35mm to 400mm (1¼" to 16"), manufactured to IS 12818:2010 in Schedule 40, 80, and 120 wall-thickness classes to suit different soil and pressure conditions.
The classification is based on well depth. CS (Casing Shallow) pipes suit wells up to 80 meters, CM (Casing Medium) pipes suit wells from 80 to 250 meters, and CD (Casing Deep) pipes suit wells from 250 to 450 meters.
Casing pipes are manufactured to IS 12818:2010, also cross-referenced to ASTM D-1785 and DIN 4925. Column riser pipes and surface plumbing pipes follow their own respective ASTM and IS specifications.
Up to 450 meters (1,476 ft) with the CD (Casing Deep) class, provided the correct Schedule rating is selected for the site conditions.
Yes. Casing pipes, column risers, and uFLO surface pipes are all manufactured from non-toxic, lead-free materials suitable for potable water extraction and distribution.
Yes. Casing pipes are rated by Schedule (wall thickness) for soil pressure, and column riser pipes use a square-thread design tested to handle the combined weight of the pump, water column, and pipe under a safety margin.
